Road Barrier

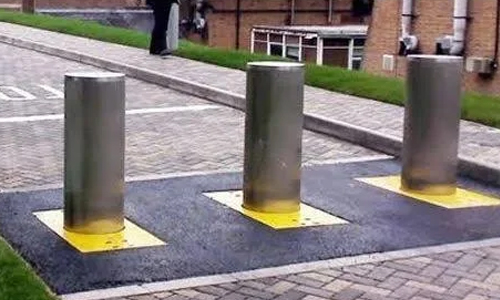

| Type | Automatic Rising Bollards |
S.NO Performance characteristics Specification
01. Max. Powar consumption supply voltage Single unit 1.82W 230V AC,Double unit 230V AC, Triple Unit 230 V AC Quadruple unit 230 V AC
02. Connected Load Drive 1200W per bollard
03. Drive 230 Volt AC , 50 Hz
04 IP Rating IP 67
05. Max. Pressure 50 bars
06. Max. flow rate of the pump 4L/ min (6L/min is optional)
07. MInimum raising time 1.5sen (bollard Height; 900mm)
08. Minimum lowering time 2.5 Sec(bollard height ;900mm)
09. Continuous Duty At 45 sec. cycle time
10. Impact load 750 KJ
11. Control System Relay signal , TTL signal
12. Corrosion Protection Foundation Pit Aluminium zinc coating High quality 2- component coating (Base Coat; cataphoretic paint)
13.Surface Treatment (Bollard made in SS) Hairline polish
14. Ambient operating temperature -20 C to +55 C
